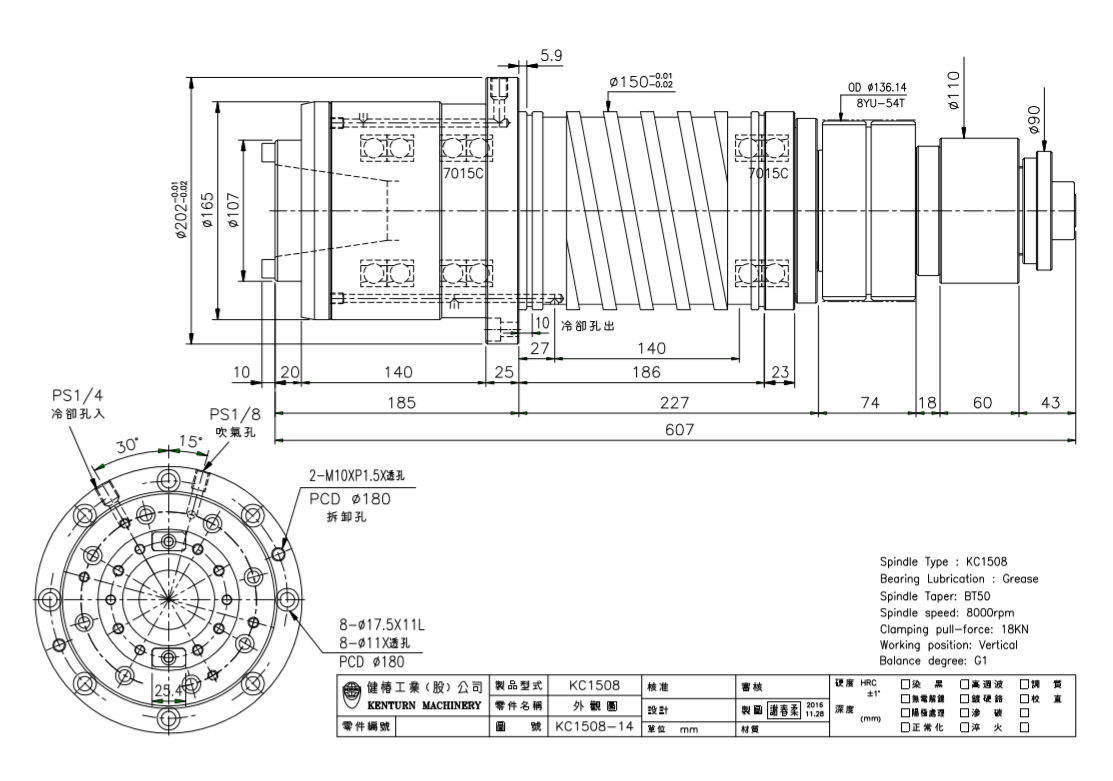

KC1508
SPECIFICATIONS
| Body Outer Dia ( mm ) | 150 |
|---|
| Max. Speed ( rpm ) | 8000 |
|---|
| Bearing Size | 75 |
|---|
| Lubrication | Grease |
|---|
| Clamping Pull - Force ( KN ) | 18 |
|---|
| Cooling | Oil |
|---|
| Belt Spec. | 8YU - 54T |
|---|

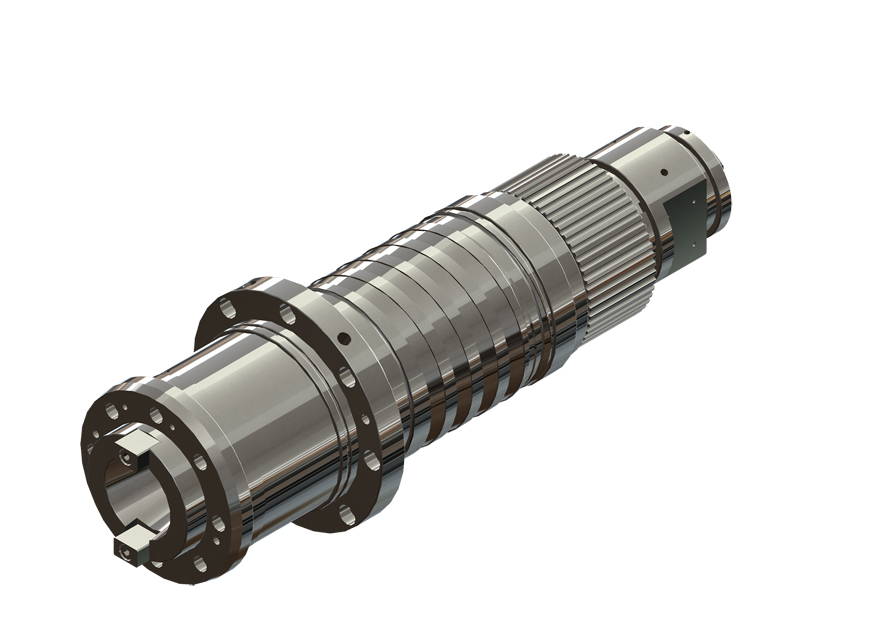

We offer two types of high precision spindles for CNC machining centers; belt drive spindles and direct drive spindles for a versatile range of machining options. The five series of CNC machining center spindles are all very rigid and feature very low runout tolerances, with speeds up to 12,000rpm. These high precision, high speed spindles are available in a range of sizes and are guaranteed to offer smooth operations and a long service life.
WORKING RANGE
